Basic Web - Based UPS Accessory SNMP Card Support Network Monitoring

    Buy cheap Basic Web - Based UPS Accessory SNMP Card Support Network Monitoring from wholesalers

    Buy cheap Basic Web - Based UPS Accessory SNMP Card Support Network Monitoring from wholesalers
    • Buy cheap Basic Web - Based UPS Accessory SNMP Card Support Network Monitoring from wholesalers
    • Buy cheap Basic Web - Based UPS Accessory SNMP Card Support Network Monitoring from wholesalers

    Basic Web - Based UPS Accessory SNMP Card Support Network Monitoring

    Ask Lasest Price
    Brand Name : HRD/OEM/ODM
    Certification : ISO9001:2008,CE
    Model Number : NETManager HRD520/530
    Price : 50-70USD/PCS;
    Delivery Time : 7days
    Payment Terms : TT
    Supply Ability : 10000pcs/month
    • Product Details
    • Company Profile

    Basic Web - Based UPS Accessory SNMP Card Support Network Monitoring


    Netmanager HRD520 /530


    Basic Web-based SNMP Card for UPS

    Brief Introduction:

    NETManager HRD520 /530 is a basic web-based SNMP card for UPS monitor and control via internet or LAN. Simple and friendly operation interface can satisfy users’ basic monitoring demands for UPS.


    Note:1.First time to use it, please make sure internet or LAN well connected to the SNMP card’s net interface.

    2.T he initial default IP address is 192.168.1.191. Account:admin Code:admin.

    This product supports auto obtaining IP address. With SNMP-Link software, you can search and find the address under FINDER menu of the software.

    3. This SNMP card can test and manage the UPS with SNMP-Link software

    4.If forget the code, press the “default “button to reset the code to be “admin”.

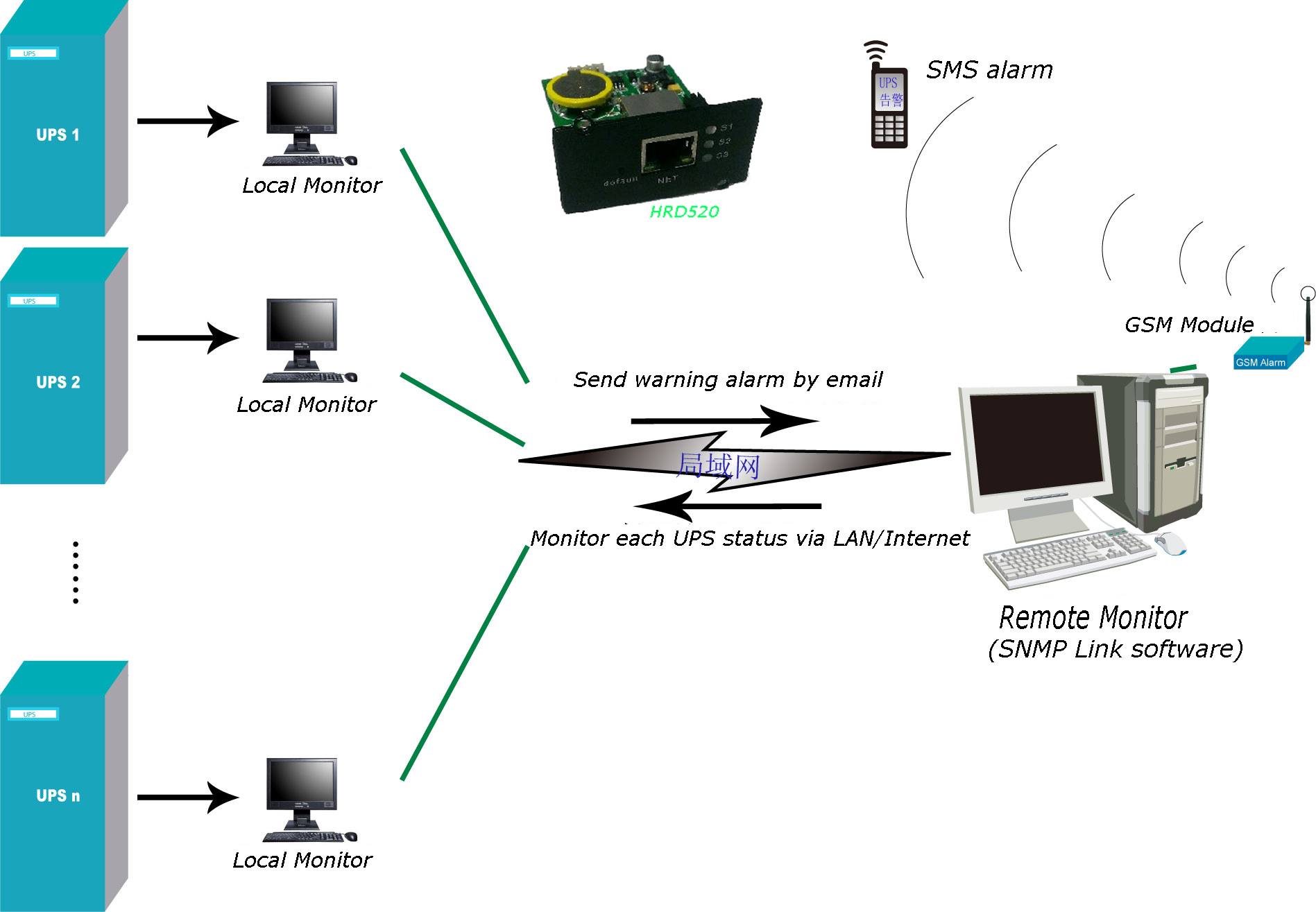

    Functions:

     Remotely monitor the status of UPS, including voltage, current, bypass, utility power, etc;

     Support network monitoring based on WEB browser;

     Equip with HRD SNMP-Link software to achieve centralized monitoring and unified

    management;

     Equip with HRD SNMP-Link software to achieve shutdown protection for client-side;

     Support different warning such AC failure, battery low, UPS failure and send email.

    Support SMS warning, and telephone or mobile dialing (GSM module shall be purchased additionally)

    Support most of the UPS brand’s communication protocol, such as,Powerware , Santak, Riello,Emerson..etc…



    Specification:

    Model

    NETManager HRD520

    NETManager HRD530

    Protocol Support

    SNMP

    connection design

    internal , cable connection

    Internal gold finger

    Network Support

    RJ45 10/100BaseT

    Supported MIB

    RFC1213, RFC1628, Voltronic MIB

    Supported Software

    SNMP-Link

    Supported OS

    Windows family, Liunx, MAC, and Solaris

    Power Input

    12VDC

    Power Consumption

    2 watt (max.)

    Operating Temperature

    0 ~ 40°C

    Operating Humidity

    0% ~ 95%

    PHYSICAL

    Dimension, D x W x H (mm)

    23 x 47 x 15

    68*60*15

    Net Weight (g)

    34.7 g

    58.0

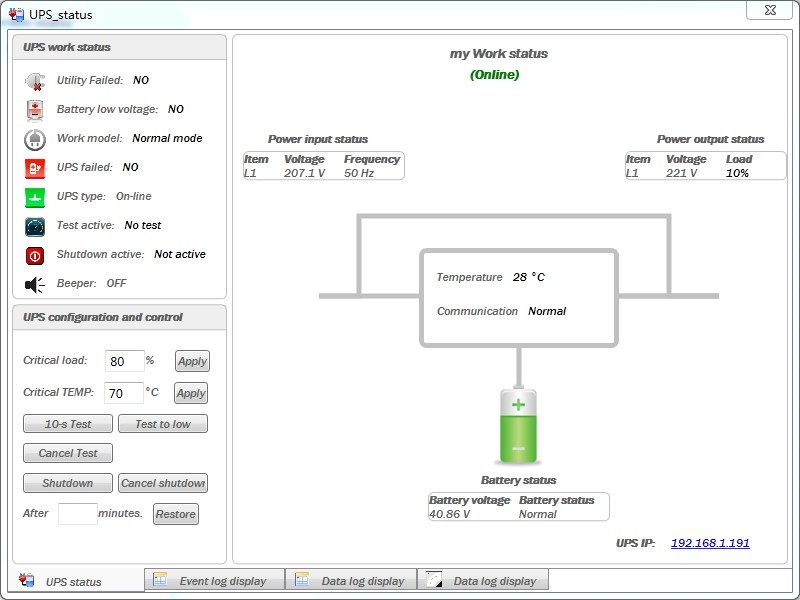

    Monitoring Interface:
